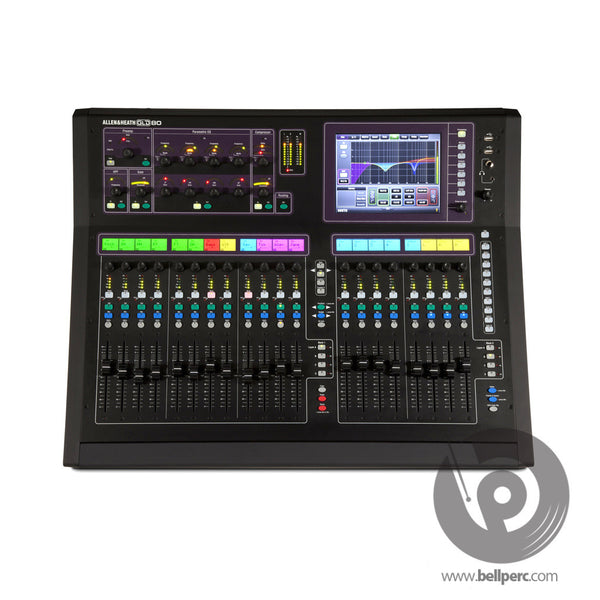

Allen and Heath GLD80 Digital Mixing Desk for Hire

GLD80 is a user-friendly, cost effective and scalable live digital mixing system, conceptually based on the hugely successful digital iLive series. At the heart of the system is the GLD80 mixer, providing 48 input processing channels, 8 stereo FX returns fed by iLive’s acclaimed FX emulations, 30 configurable buses, 20 mix processing channels, and DSP power to provide full processing without compromise.

FEATURES

* Compact digital mixer with scalable, remote I/O
* Systems from 4 to 44 mics
* 1Easy to use, quick to access, analogue style interface
* dSNAKE Cat5 digital snake—up to 120m cable length
* 20 faders, 4 layers, 80 channel strips in a freely customisable layout
* 48 input channels into 30 assignable buses (Aux, Group, Matrix, Main, FX Send) into 20 mix outputs
* 8 stereo RackFX engines* with dedicated ‘short’ returns with 4-band PEQ
* Full processing on all inputs including trim, polarity, HPF, insert, gate, 4-band PEQ, compressor and delay
* Full processing on all outputs including insert, PEQ, GEQ, compressor and delay
* LR, None (monitors), LR+M (sum), LR+M (bus), LCR main mix modes
* 16 DCAs / mute groups
* Built-in Talkback, RTA and Signal Generator
* I/O module options for FOH/Monitor split, multitrack recording, link to iLive and more
* MIDI In/Out and Ethernet Network port
* User definable channel names and colours
* Engineer’s mono Wedge and stereo IEM strips
* Input, output and insert soft patchbays
* Quick copy, paste and reset of mixes and parameters
* Libraries, Scenes and Show memories with USB transfer
